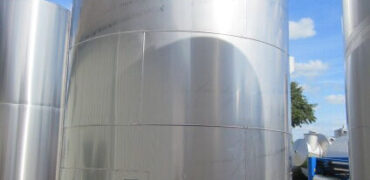

SS316 Insulated process tank with double jacket and agitator.
Capacity: 30.000 liter
Density: 1,35
Year of construction
2003
State
Used
Manufacturer
Hagemann
Quantity
1
Capacity size
30,000 liter
Material
SS 316
Empty weight
3,100 kg
Working pressure
0 bar
Test pressure
0.39 bar
Foundation
SS legs
Number of legs
4
Modell bottom head
Round
Modell top head
Round
Insulation thickness
80 mm
Insulation material
Glass wool
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
Yes
Brand
Nord
Type
SK132M/40
Kind
Propeller
Number of agitators
1
Location drive
On top
Speed
1450/69 rpm
Engine power
9.2 kW
Inside diameter
2,800 mm
Outside diameter
2,980 mm
Cylindrical height
4,900 mm
Total height
6,900 mm
Leg length
1,000 mm
Outlet height
400 mm
Wall thickness cylinder
5 mm
Wall thickness roof
6 mm
Outlet
70 mm
Inlet
75 mm
Breather vent
90 mm
Type of breather vent
Miscellaneous
Manhole
600 mm
Place manhole
On top
Type of shell
Coil-halve pijpspiraal
Working pressure steam
10 bar
Working pressure water
10 bar
Test pressure
18.4 bar
Max. temp. shell
300 °C
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
