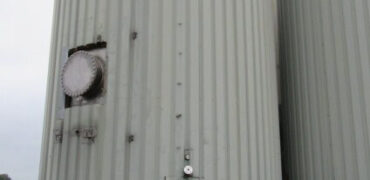

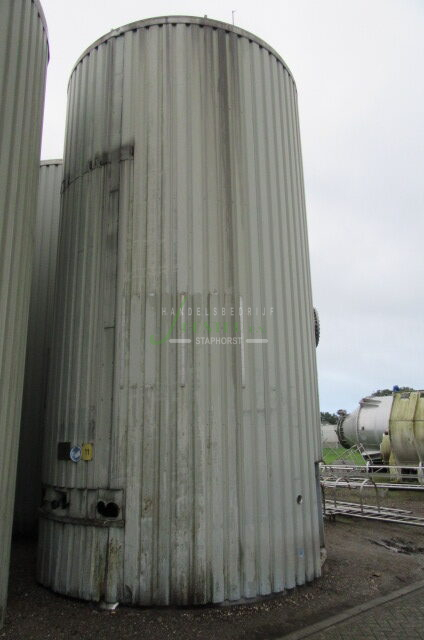

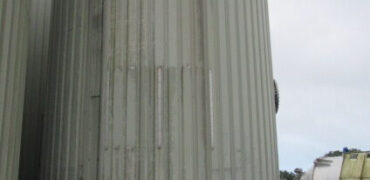

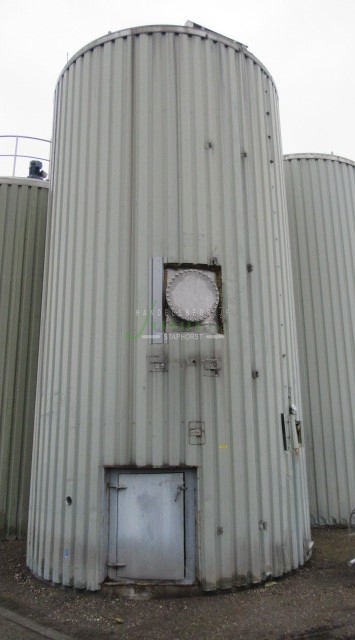

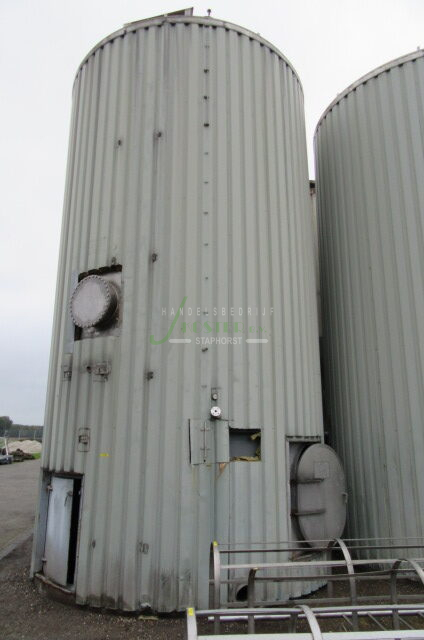

RVS 316 geïsoleerde opslagtank
Inhoud: 75000 liter
Kooiladder en reling aanwezig

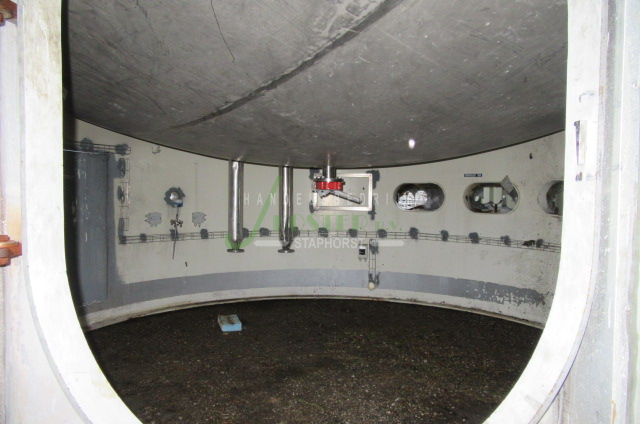

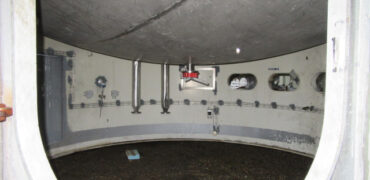

Tank heeft een spiraal
Werkdruk stoom: 3 bar
Werkdruk water: 3 bar
Testdruk: 6 bar
Max. temp. mantel: 90ºC
Status
Gebruikt
Fabrikaat
De Rijk apparatenbouw
Aantal
1
Inhoud
75.000 liter
Materiaal
RVS 316
Ledig gewicht
7.500 kg
Werkdruk
0 bar
Fundatie
Rok
Model bodem onder
Bol
Model bodem boven
Conisch
Isolatiedikte
100 mm
Isolatiemateriaal
Glaswol
Isolatie afwerking
Damwandprofiel
Cilinder
Ja
Bodem onder
Nee
Bodem boven
Ja
Diameter inwendig
4.100 mm
Diameter uitwendig
4.360 mm
Cilindrische hoogte
600 mm
Totale hoogte
9.770 mm
Wanddikte bodem
6 mm
Wanddikte cilinder
4-3 mm
Wanddikte tankdak
3 mm
Uitloop
75 mm
Inlaat
65 mm
Ontluchting
65 mm
Soort ontluchting
Met bocht

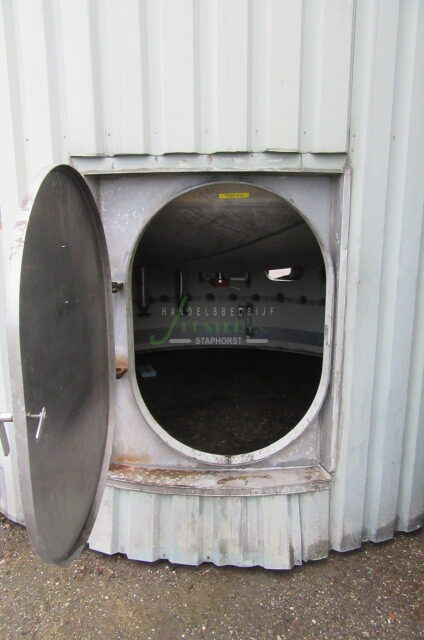

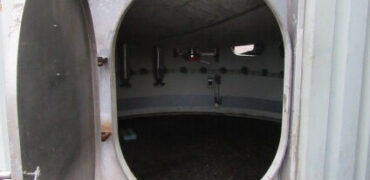

Mangat
500 mm
Plaats mangat
Bovenop en zijkant
