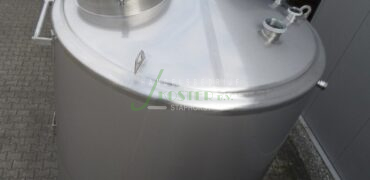

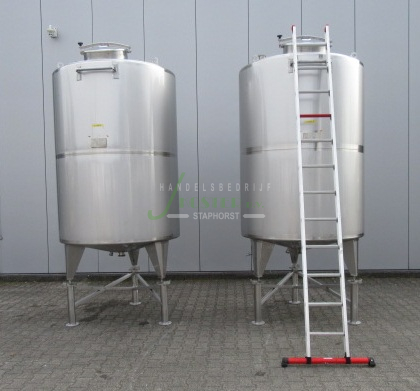

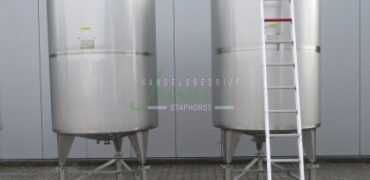

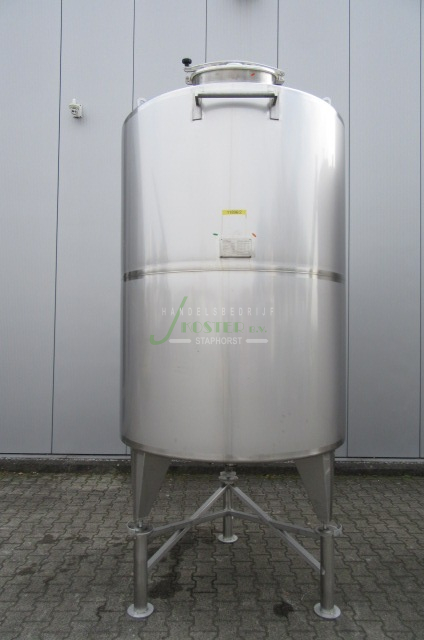

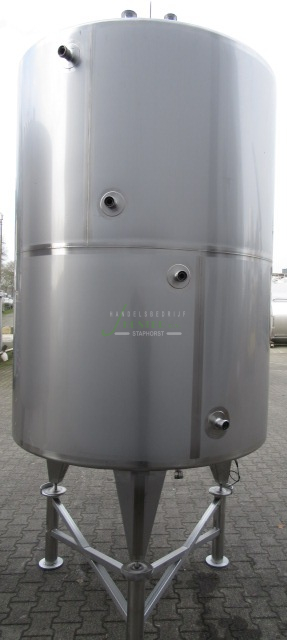

SS 316 insulated double-walled tank
Capacity: 3200 litres
Year of construction
2021
State
Used
Quantity
2
Capacity size
3,200 liter
Material
SS 316
Empty weight
540 kg
Working pressure
atm bar

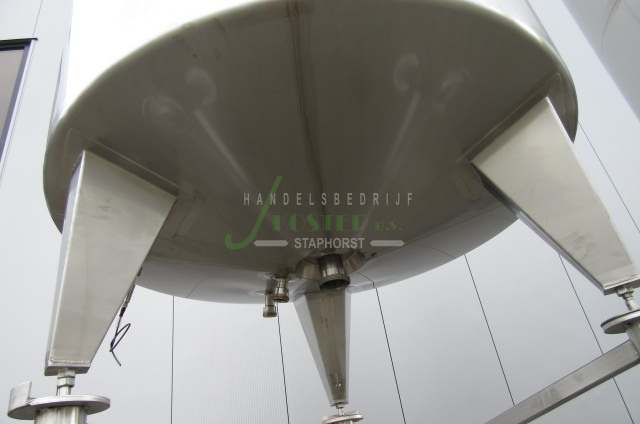

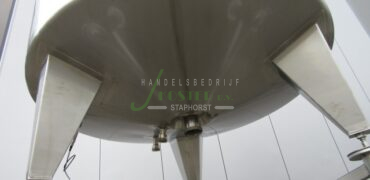

Foundation
SS legs
Number of legs
3
Modell bottom head
Conical
Modell top head
Conical
Insulation thickness
50 mm
Insulation material
Rockwool
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
No
Inside diameter
1,393 mm
Outside diameter
1,514 mm
Cylindrical height
200 mm
Total height
2,377 mm
Leg length
534 mm
Wall thickness bottom
2.5 mm
Wall thickness cylinder
2.5 mm
Wall thickness roof
2 mm
Outlet
70 mm
Inlet
70/85 mm
Breather vent
85 mm
CIP connection
85 mm
Type of CIP
Rotating

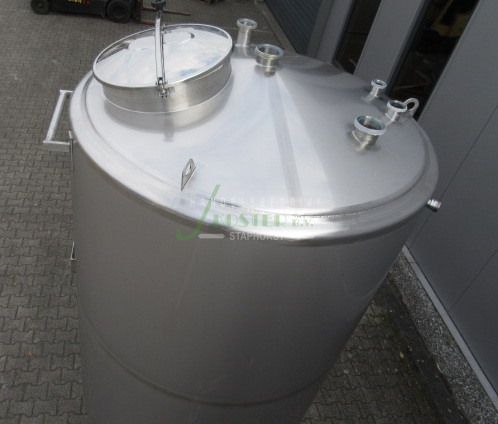

Manhole
500 mm
Place manhole
On top
Type of shell
thermplate
Heated surface
6.4 m2
Working pressure water
0/3 bar
Max. temp. shell
-10/110 °C
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
