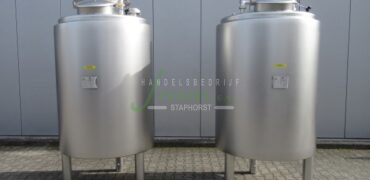

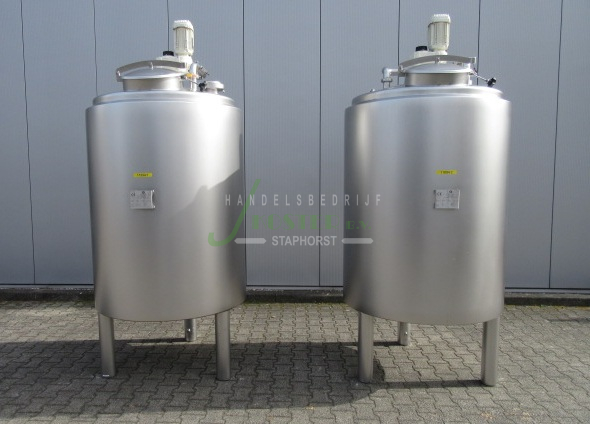

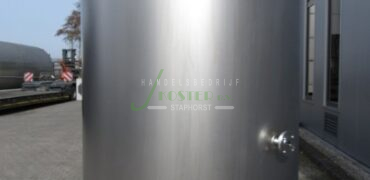

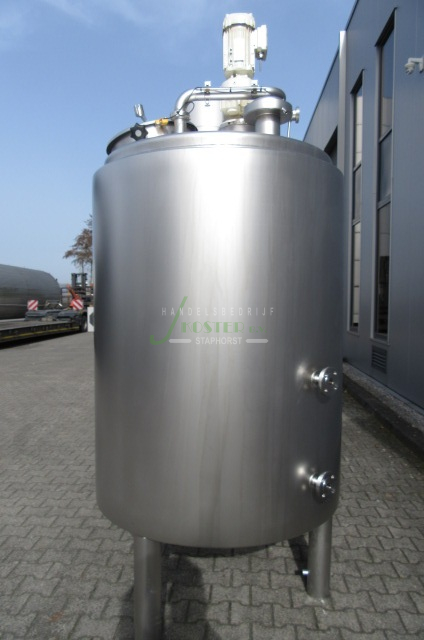

SS 316 insulated double-walled tank with agitator
Capacity: 1300 liter
Year of construction
2019
State
Used
Manufacturer
Bac Machinebouw
Quantity
2
Capacity size
1,300 liter
Material
SS 316
Empty weight
500 kg
Working pressure
atm bar
Foundation
SS legs
Number of legs
3
Modell bottom head
Conical
Modell top head
Conical
Insulation thickness
50 mm
Insulation material
Glass wool
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
No

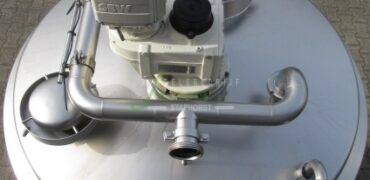

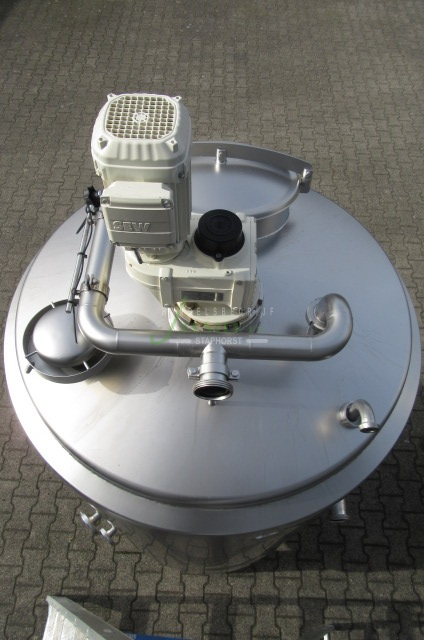

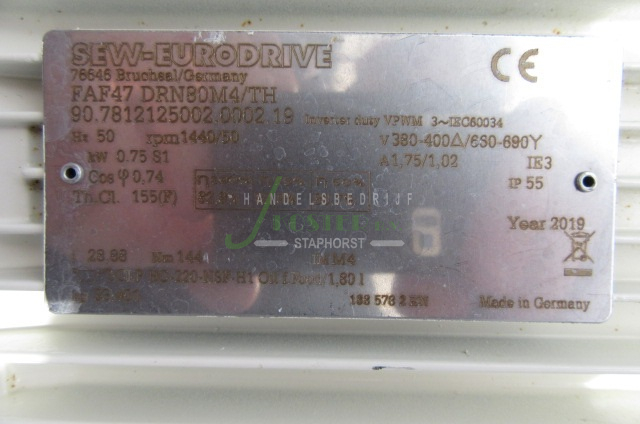

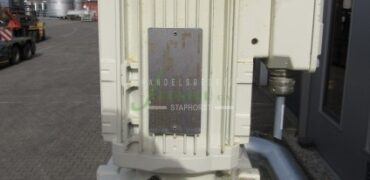

Brand
SEW Eurodrive
Type
FAF47DRN80M4

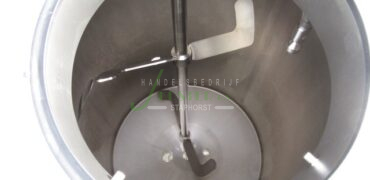

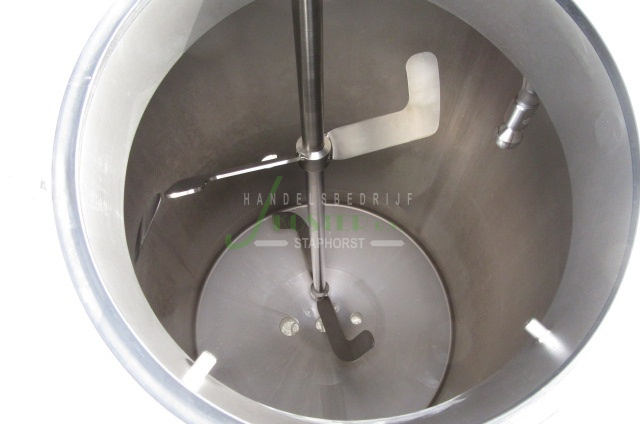

Kind
Propeller
Diameter propeller
680 mm
Number of agitators
1
Location drive
On top
Speed
1440/50 rpm
Engine power
0.75 kW
Inside diameter
1,100 mm
Outside diameter
1,206 mm
Cylindrical height
1,500 mm
Total height
2,800 mm
Leg length
548 mm
Outlet height
240 mm
Outlet
70 mm
Inlet
29 mm
Breather vent
104 mm
Type of breather vent
With cap

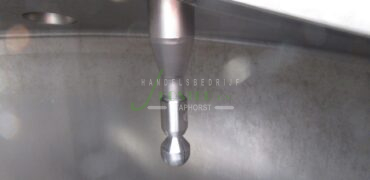

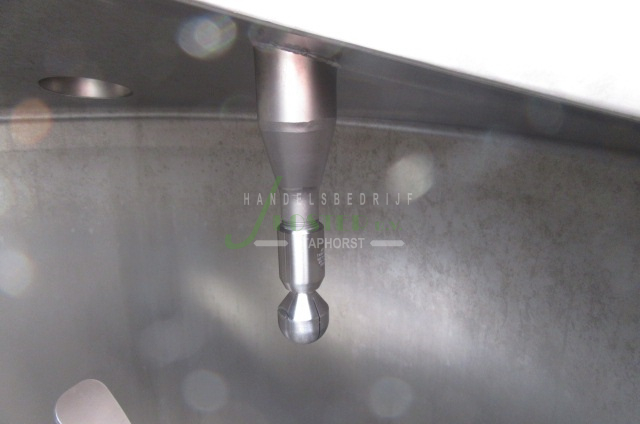

CIP connection
53 mm
Type of CIP
Rotating

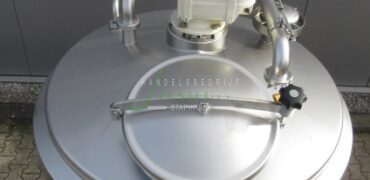

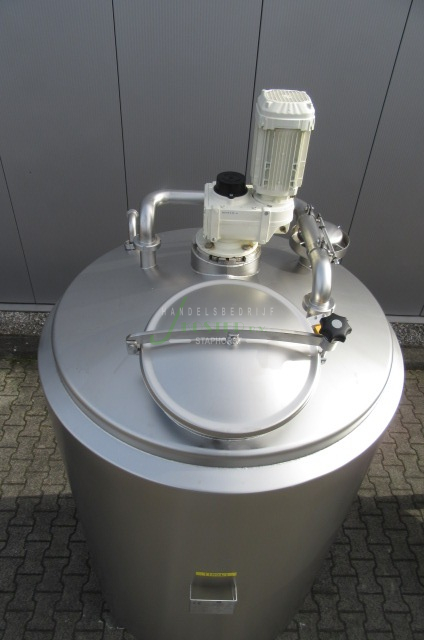

Manhole
420 mm
Place manhole
On top
Type of shell
Noppenmantel
Heated surface
1.72 m2
