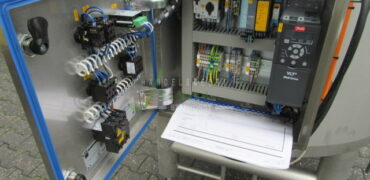

SS 316 Insulated processtank with agitator and controlbox.
Capacity: 800 litre
Year of construction
2019
State
New
Manufacturer
EMPL ANLAGEN
Quantity
1
Capacity size
800 liter
Material
SS 316
Empty weight
550 kg
Working pressure
0 bar
Foundation
SS legs
Number of legs
4
Modell bottom head
Conical
Modell top head
Round
Insulation thickness
50 mm
Insulation material
Rockwool
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
No
Brand
Nord
Type
SK1282 AFH-90SP/4TF
Kind
Propeller
Diameter propeller
400 mm
Number of agitators
1
Location drive
On top
Speed
1740/8 rpm
Engine power
1.1 kW
Inside diameter
1,100 mm
Outside diameter
1,200 mm
Cylindrical height
850 mm
Total height
2,200 mm
Leg length
600 mm
Outlet height
300 mm
Wall thickness bottom
4 mm
Wall thickness cylinder
4 mm
Wall thickness roof
5 mm
Outlet
32 mm
Inlet
32 mm
Breather vent
35 mm
Type of breather vent
With bend pipe
CIP connection
27 mm
Type of CIP
Rotating
Manhole
410 mm
Place manhole
On top
