11819

Description

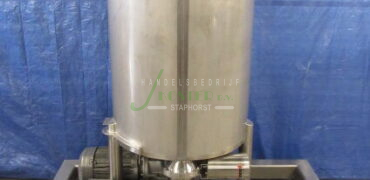

SS 304 process tank with Anchor agitator + stator and screw pump


Capacity: 350 liter


Additional information

Lenze screw pumpe: V230/460, Rpm 1440/346.2, KW 2.2, Type: Gst06-2M VAL 100C12


General

State

Used

Quantity

1

Capacity size

350 liter

Material

SS 304

Empty weight

330 kg

Working pressure

0 bar

Foundation

Frame with legs

Number of legs

4

Modell bottom head

Flat bottom

Modell top head

Flat

Agitator

Brand

SEW - Vector

Type

KAZ 77 DRS 132S4

Kind

Gate stirrer

Diameter propeller

650 mm

Number of agitators

1

Location drive

In the bottom

Speed

56 rpm

Engine power

5.5 kW

Dimensions

Outside diameter

750 mm

Cylindrical height

870 mm

Total height

1,700 mm

Fittings

Outlet

65 mm

Inlet

65 mm

Manhole

675/265 mm

Place manhole

On top
