11794

Description

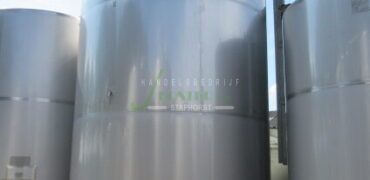

SS 316 storage tank with agitator


Capacity: 30000 liter


Additional information

Tank 1: Agitator Jongia, see specification


Tank 2: Agitator Typhoon 4 Kw, rpm 1440/460


Tank 3: Agitator Jongia 5-6 B, 3.7 Kw, rpm 460


General

State

Used

Quantity

2

Capacity size

30,000 liter

Material

SS 316

Working pressure

0 bar

Foundation

SS legs

Number of legs

4

Modell bottom head

Round

Modell top head

Round

Agitator

Brand

Typhoon(2), Jongia (3)

Kind

Propeller

Number of agitators

1

Location drive

On top

Dimensions

Outside diameter

2,900 mm

Cylindrical height

4,500 mm

Total height

6,600 mm

Leg length

1,000 mm

Outlet height

550 mm

Wall thickness bottom

5 mm

Wall thickness cylinder

4 mm

Wall thickness roof

4 mm

Fittings

Outlet

75 mm

Inlet

75 mm

Breather vent

75 mm

Type of breather vent

Miscellaneous

Manhole

500 mm

Place manhole

On top
