11765

Description

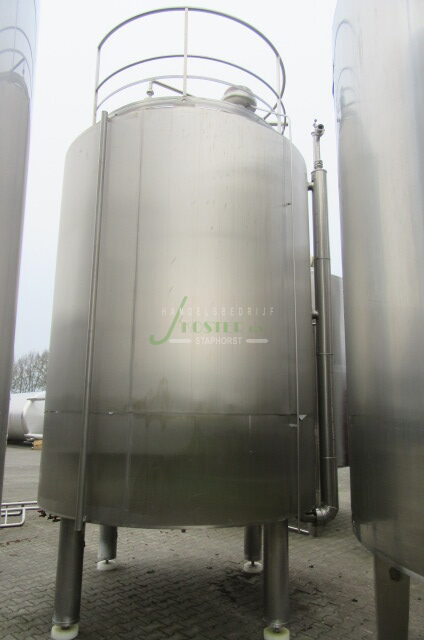

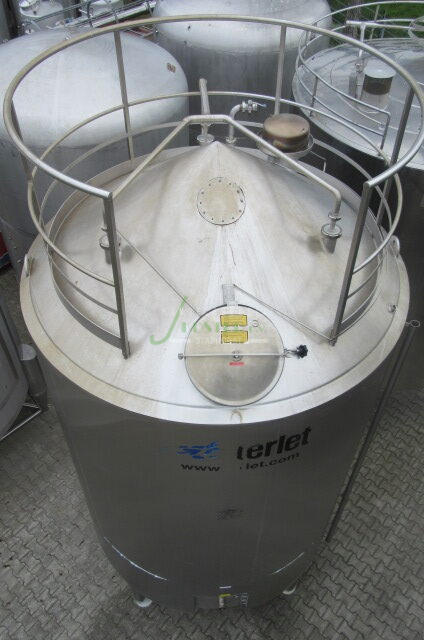

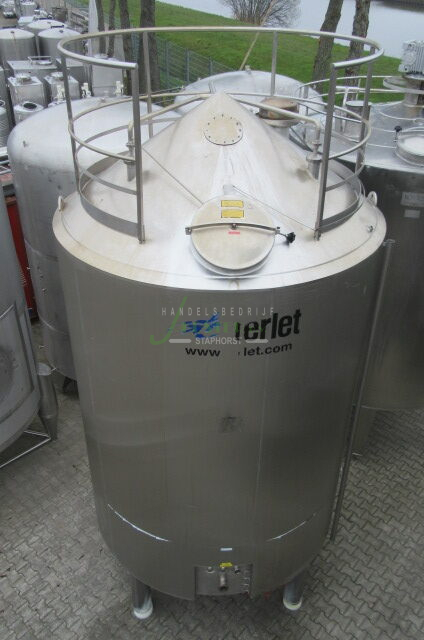

SS 316 insulated tank with agitator


Capacity: 15000 liter


General

Year of construction

2004

State

Used

Manufacturer

Terlet

Quantity

1

Capacity size

15,000 liter

Material

SS 316

Empty weight

2,200 kg

Working pressure

0 bar

Foundation

SS legs

Number of legs

4

Modell bottom head

Flat bottom

Modell top head

Conical

Insulation

Insulation thickness

40 mm

Insulation material

Glass wool

Insulation clad

SS clad

Cylinder

Yes

Bottom head

Yes

Top head

No

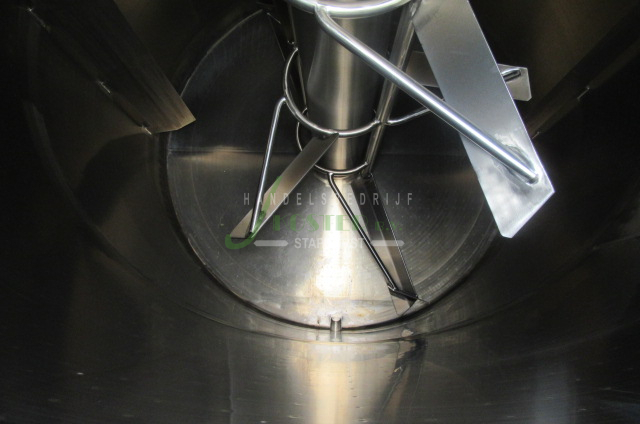

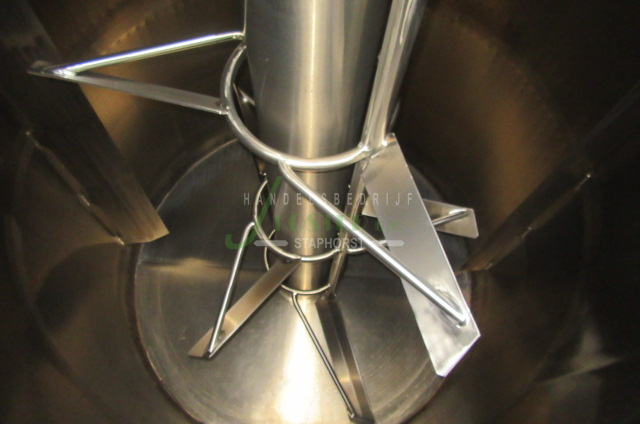

Agitator

Brand

SEW Eurodrive

Type

KAF97DRN160M4/TF

Kind

Propeller

Diameter propeller

1,600 mm

Number of agitators

1

Location drive

In the bottom

Speed

1473/26 rpm

Engine power

11 kW

Dimensions

Inside diameter

2,544 mm

Outside diameter

2,677 mm

Cylindrical height

3,100 mm

Total height

5,530 mm

Leg length

870 mm

Outlet height

1,100 mm

Fittings

Outlet

65 mm

Inlet

65 mm

Breather vent

200 mm

Type of breather vent

With cap

CIP connection

25 mm

Type of CIP

Spray ball

Manhole

500 mm

Place manhole

On top
