11724

Description

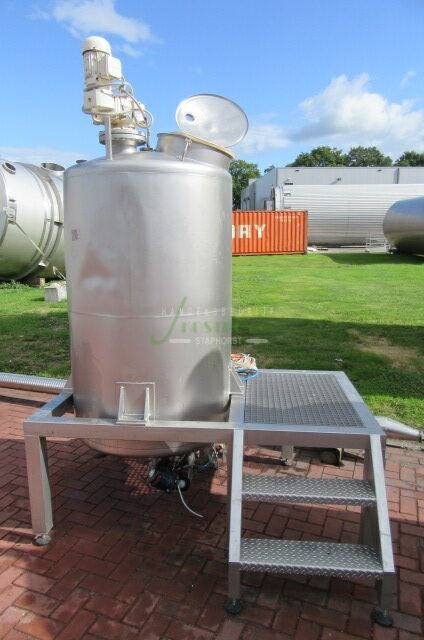

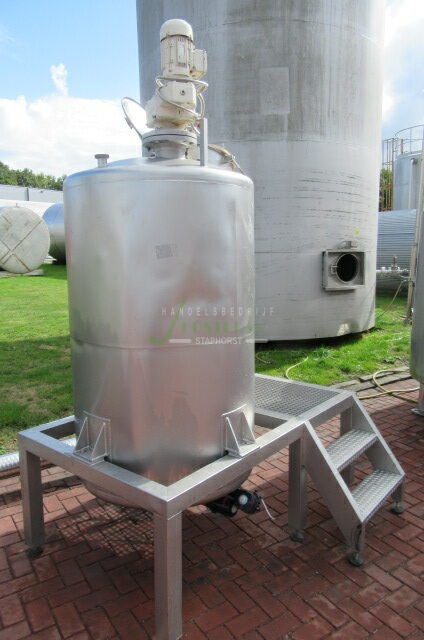

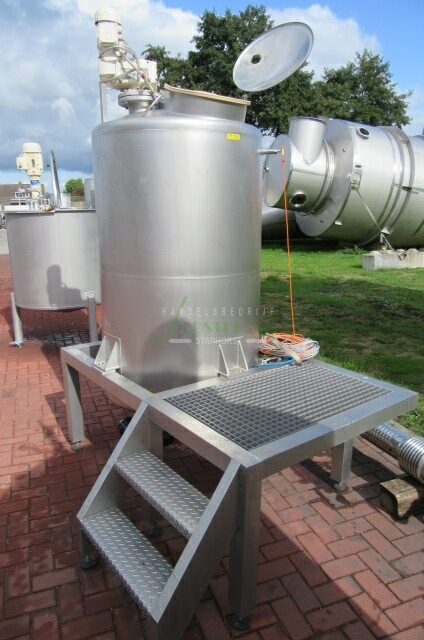

SS 304 tank in frame with agitator and with landing


Capacity: 1000 liter


General

State

Used

Quantity

1

Capacity size

1,000 liter

Material

SS 304

Working pressure

0 bar

Foundation

Frame with legs

Number of legs

7

Modell bottom head

Round

Modell top head

Round

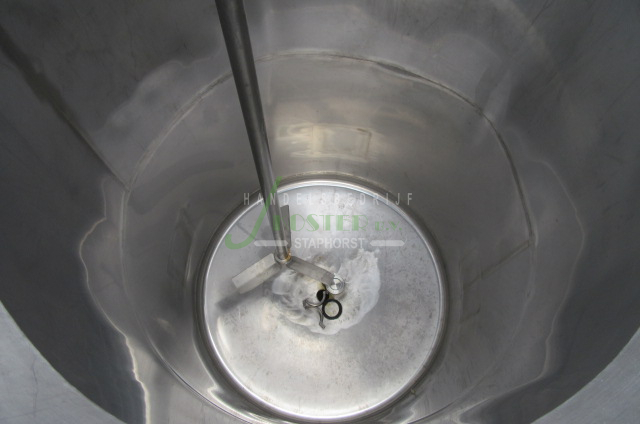

Agitator

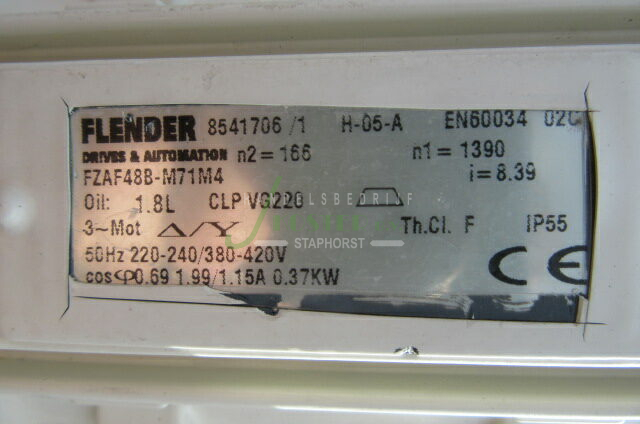

Brand

Flender

Type

FZAF48B-M71M4

Kind

Propeller

Diameter propeller

380 mm

Number of agitators

1

Location drive

On top

Speed

1,390 rpm

Engine power

0.37 kW

Dimensions

Inside diameter

940 mm

Outside diameter

940 mm

Cylindrical height

1,400 mm

Total height

2,600 mm

Leg length

635 mm

Outlet height

325 mm

Fittings

Outlet

50 mm

Inlet

40 mm

Breather vent

45 mm

Type of breather vent

With bend pipe

Manhole

420 mm

Place manhole

On top
