11464

Description

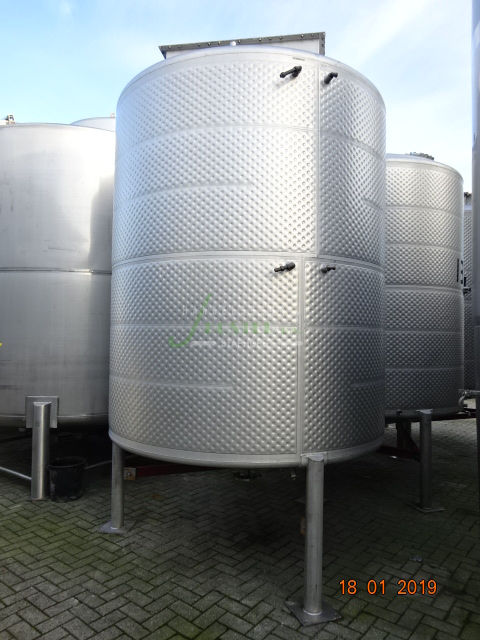

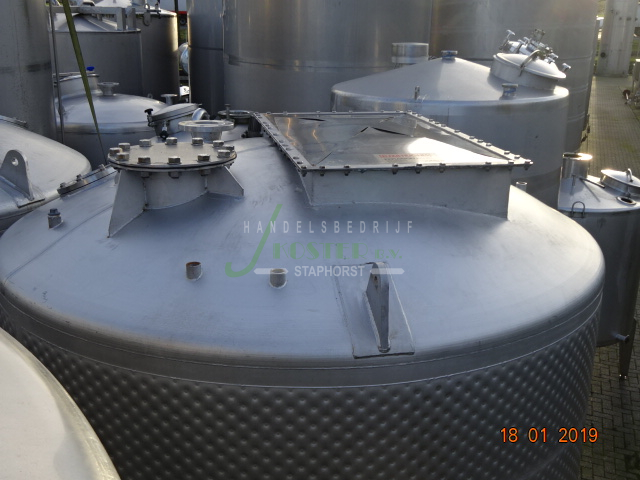

SS 304 tank


Capacity : 10.000 liter


General

State

Used

Quantity

2

Capacity size

10,000 liter

Material

SS 304

Empty weight

800 kg

Working pressure

0 bar

Foundation

SS legs

Number of legs

3

Modell bottom head

Conical

Modell top head

Conical

Dimensions

Inside diameter

2,200 mm

Outside diameter

2,240 mm

Cylindrical height

2,500 mm

Total height

3,800 mm

Leg length

850 mm

Outlet height

500 mm

Wall thickness bottom

3 mm

Wall thickness cylinder

3 mm

Wall thickness roof

3 mm

Fittings

Outlet

88 mm

Double jacket

Type of shell

noppenmantel

Working pressure steam

2 bar

Working pressure water

3 bar

Test pressure

12 bar
