SS 304 insulated tank with agitator
Capacity: 10.500 liter
State
Used
Quantity
1
Capacity size
10,500 liter
Material
SS 304
Working pressure
0 bar

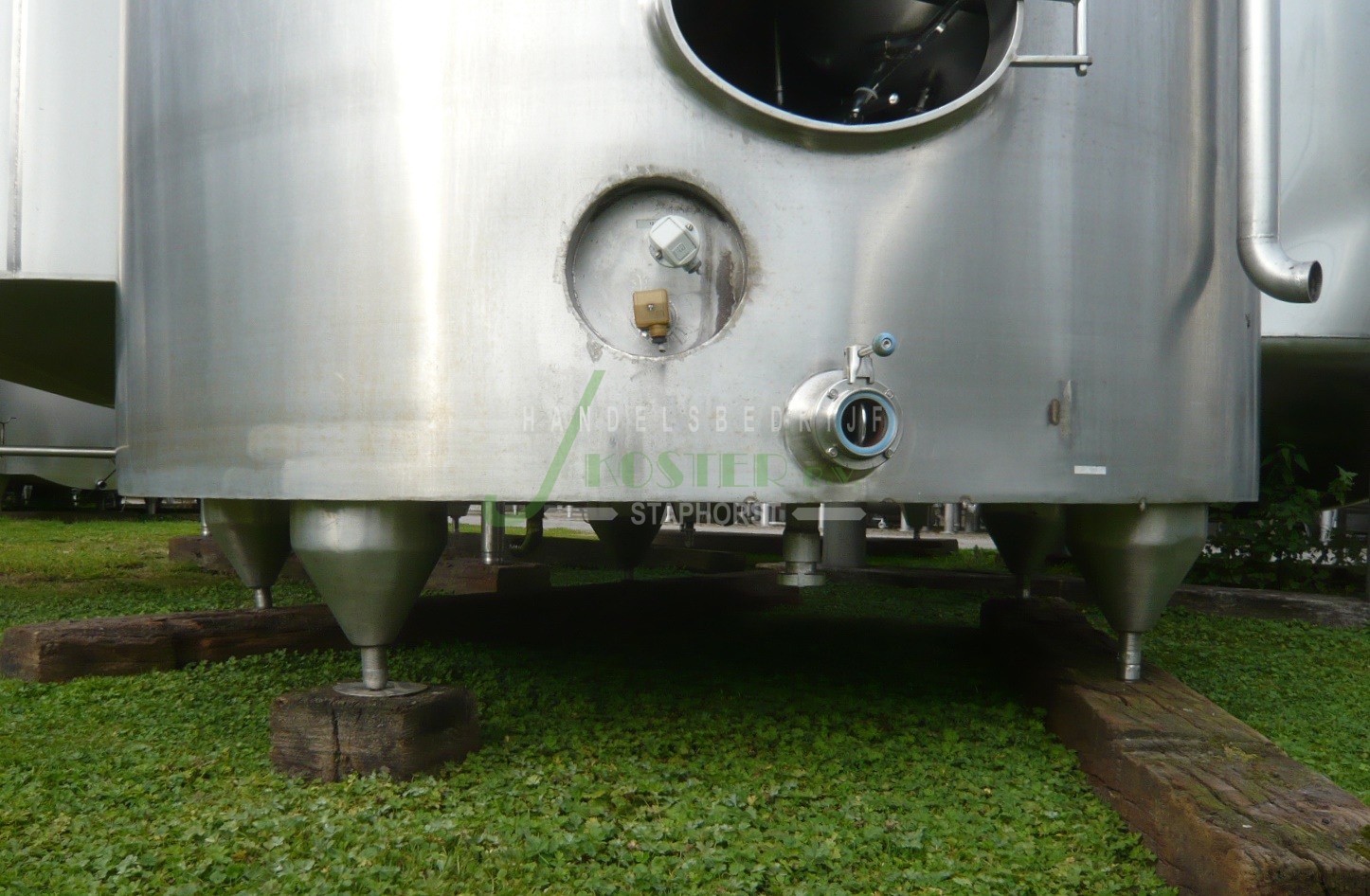

Foundation
SS legs
Number of legs
5
Modell bottom head
Flat bottom with slope

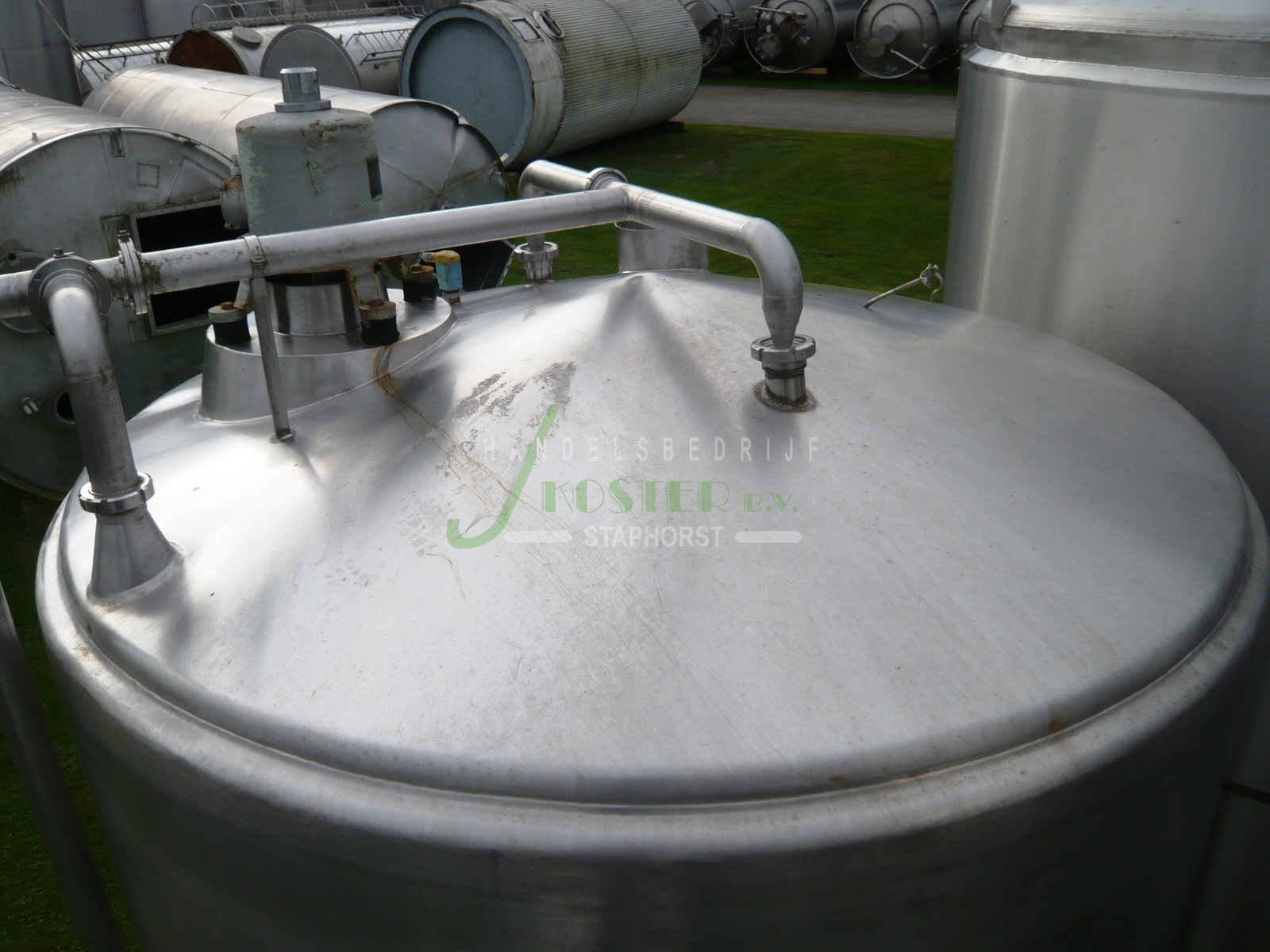

Modell top head
Conical
Insulation thickness
50 mm
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
Yes
Kind
Propeller
Diameter propeller
400 mm
Number of agitators
1
Location drive
On top
Speed
470 rpm
Engine power
1.2 kW
Inside diameter
2,380 mm
Outside diameter
2,480 mm
Cylindrical height
2,300 mm
Outlet
65 mm
CIP connection
70 mm
Type of CIP
Spray ball
Manhole
500/350 mm
Place manhole
On top and side
Type of shell
rectangular half coil in bottom
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
