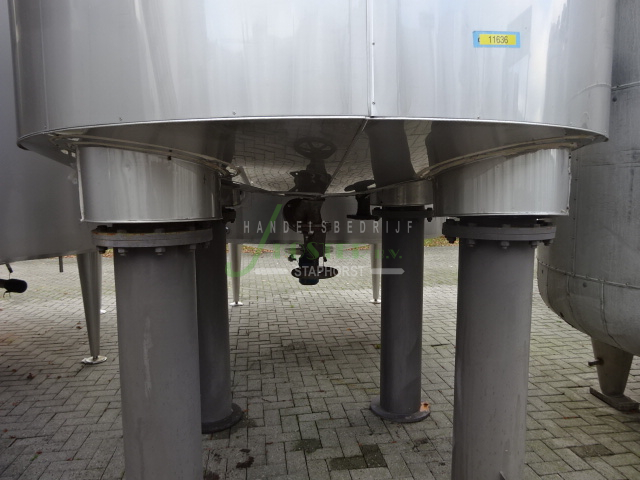

SS 304 insulated tank with double jacket
Capacity: 10.525 liter
State
Used
Manufacturer
Fried. AMBS
Quantity
1
Capacity size
10,525 liter
Material
SS 304
Working pressure
0.5 bar
Test pressure
0.65 bar
Foundation
Steel legs
Number of legs
4
Modell bottom head
Round
Modell top head
Round
Insulation clad
SS clad
Bottom head
Yes
Top head
Yes
Inside diameter
2,200 mm
Outside diameter
2,450 mm
Cylindrical height
3,000 mm
Total height
5,100 mm
Leg length
1,600 mm
Outlet height
1,470 mm
Manhole
500 mm
Place manhole
On top
Type of shell
Coil
Heated surface
3.45 m2
Test pressure
3 bar
Max. temp. shell
200 °C
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
