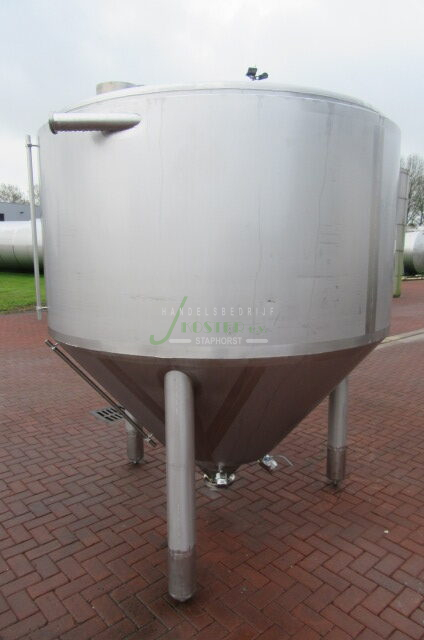

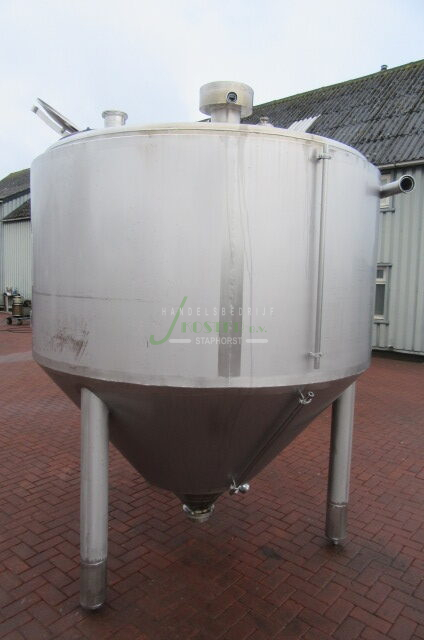

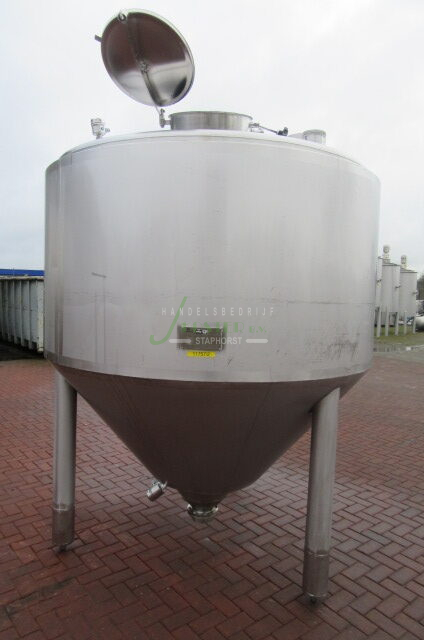

Ss 316 insulated storage tank
Capacity: 5000 liter
Year of construction
2011
State
Used
Manufacturer
Helmes Apparatebau
Quantity
3
Capacity size
5,000 liter
Material
SS 316
Working pressure
0 bar
Foundation
SS legs
Number of legs
3
Modell bottom head
Conical
Modell top head
Conical
Insulation thickness
60 mm
Insulation material
Rockwool
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
No
Inside diameter
2,000 mm
Outside diameter
2,120 mm
Cylindrical height
1,050 mm
Total height
3,050 mm
Leg length
1200-1300 mm
Outlet height
150 mm

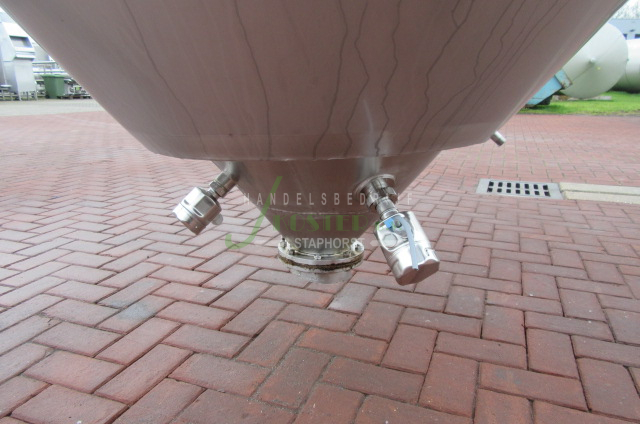

Outlet
70-150 mm
Inlet
65 mm
Breather vent
150 mm
Type of breather vent
Miscellaneous
CIP connection
45 mm
Type of CIP
Rotating

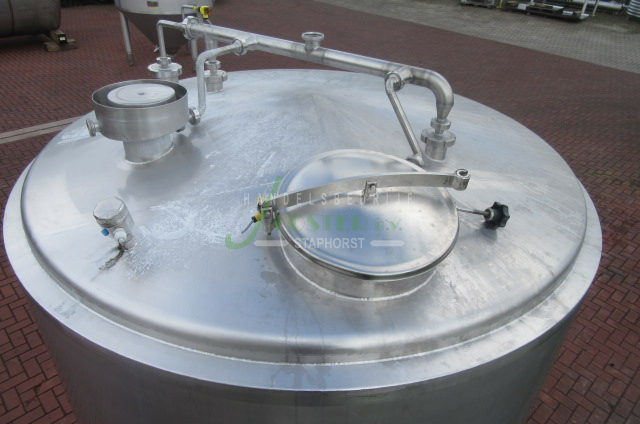

Manhole
450 mm
Place manhole
On top
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
