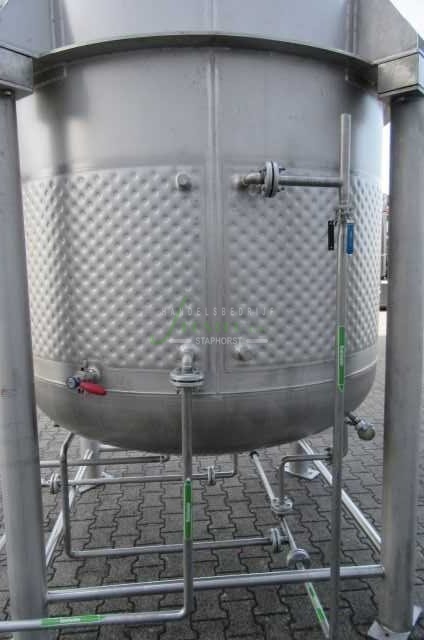

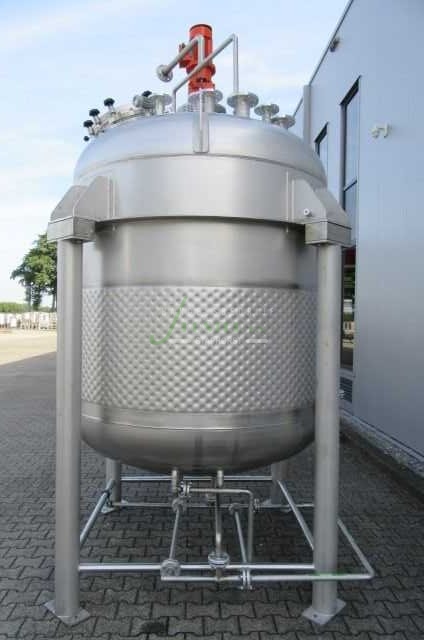

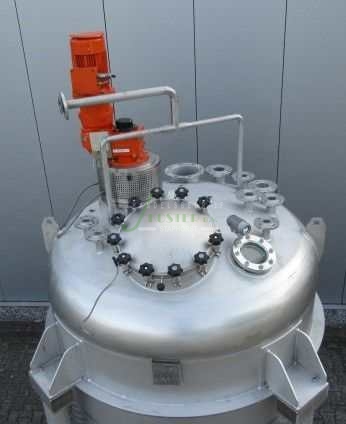

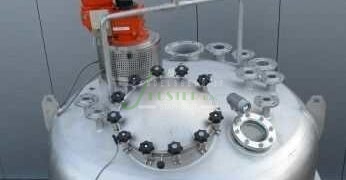

SS 316 process tank with agitator and double jacket
Pressure: -1/6 bar
Capacity: 4750 litres
This agitator is explosion proof
Seal agitator is with sealing water and can withstand pressure of 6 bar
Drawing tank and agitator avialable

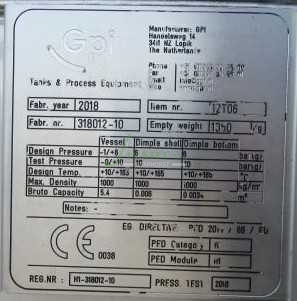

Year of construction
2018
State
Used
Manufacturer
GPI
Quantity
1
Capacity size
4,750 liter
Material
SS 316
Empty weight
1,360 kg
Working pressure
-1/+6 bar
Planpressure
-1/+6 bar
Test pressure
0/+10 bar

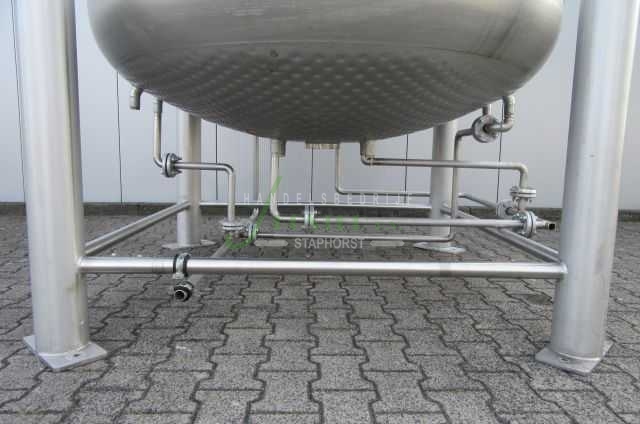

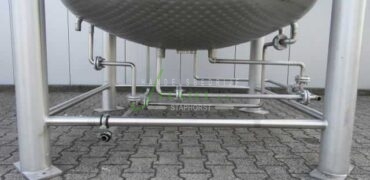

Foundation
SS legs
Number of legs
4

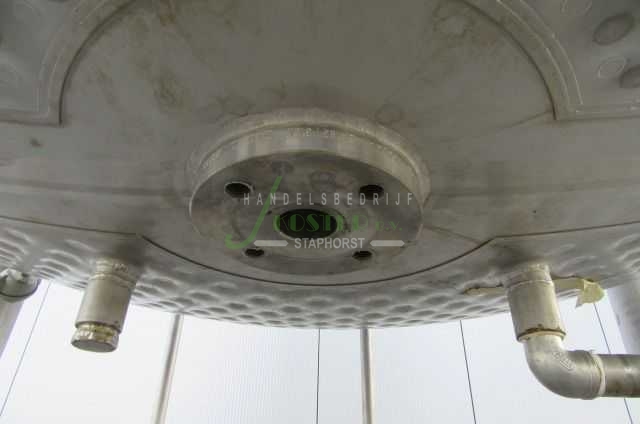

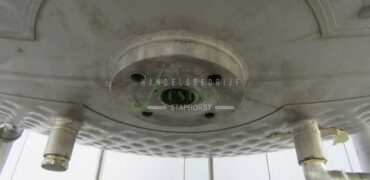

Modell bottom head
Round
Modell top head
Round

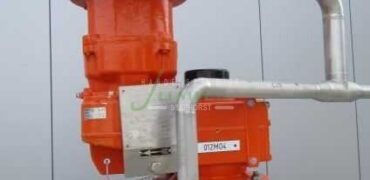

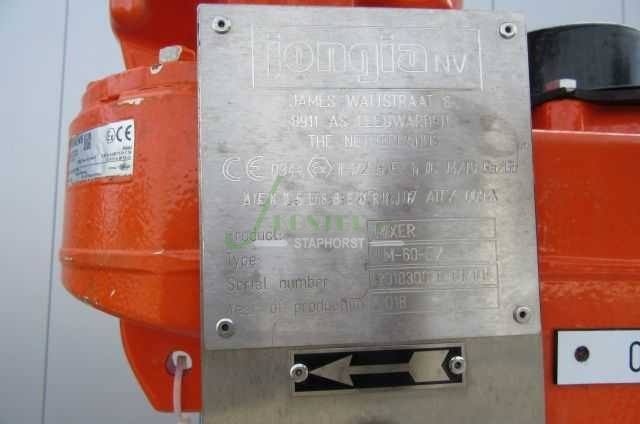

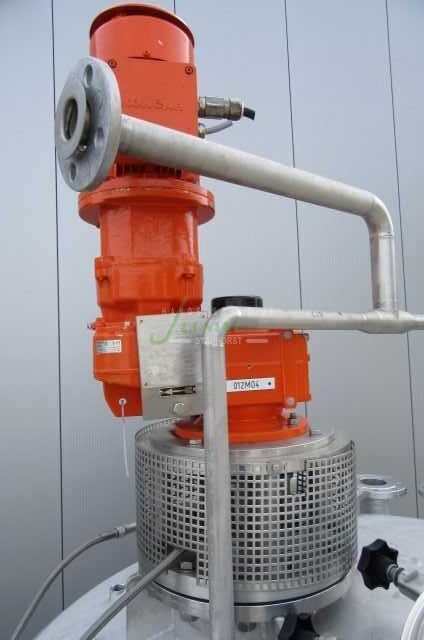

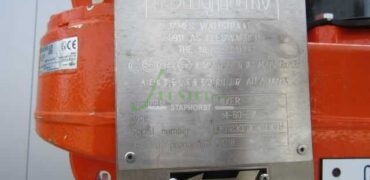

Brand
Jongia
Type
LM-60-EX

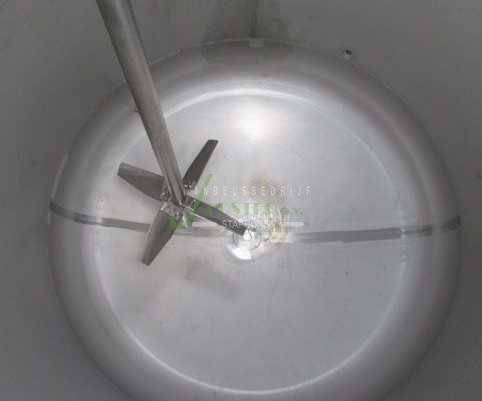

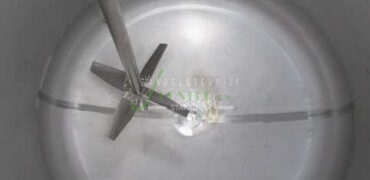

Kind
Propeller
Diameter propeller
600 mm
Number of agitators
1
Location drive
On top
Speed
167 rpm

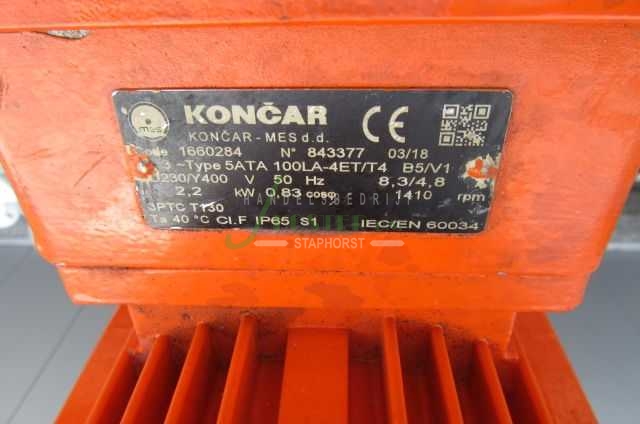

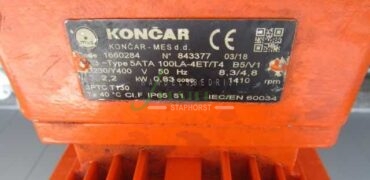

Engine power
2.2 kW
Inside diameter
1,800 mm
Outside diameter
1,820 mm
Cylindrical height
1,500 mm
Total height
4,200 mm
Leg length
2,250 mm
Outlet height
590 mm
Wall thickness bottom
6 mm
Wall thickness cylinder
6 mm
Wall thickness roof
10 mm
Outlet
40 mm
Inlet
48,3 mm

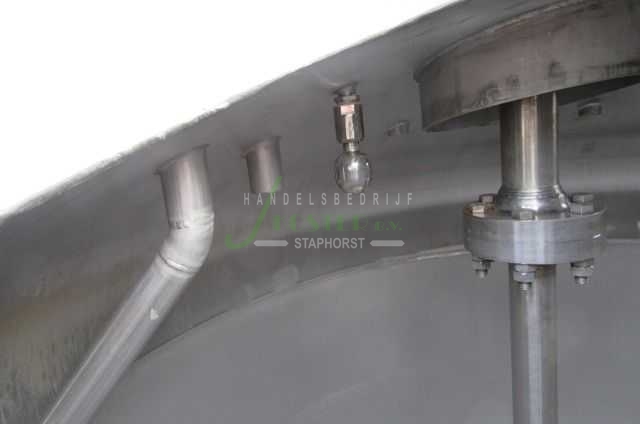

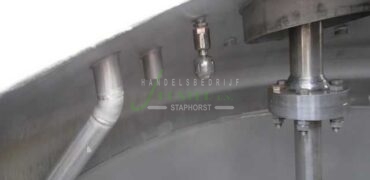

CIP connection
21,75 mm
Type of CIP
Rotating
Manhole
500 mm
Place manhole
On top

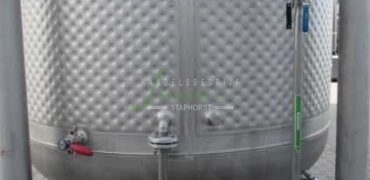

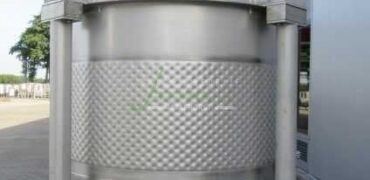

Type of shell
Dimple plate
Heated surface
3,05 m2
Working pressure steam
6 bar
Working pressure water
6 bar
Test pressure
10 bar
Max. temp. shell
+10/+165 °C
