State
New

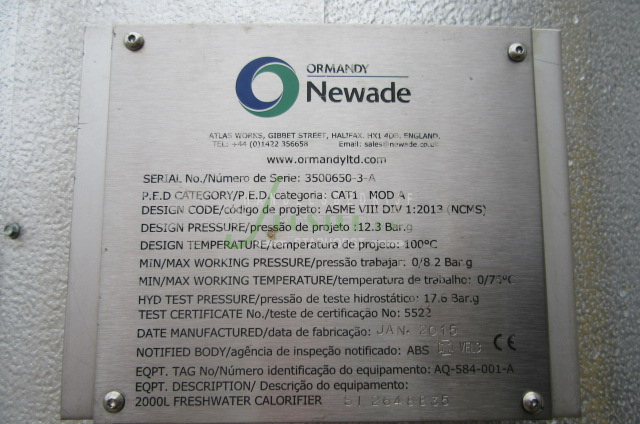

Manufacturer
Ormondy Newade
Quantity
1
Capacity size
2,000 liter
Material
SS 316
Working pressure
0-8.2 bar
Planpressure
12.3 bar
Test pressure
17.6 bar
Foundation
Steel frame
Number of legs
3
Modell bottom head
Round
Modell top head
Round
Insulation thickness
50 mm
Insulation material
Rockwool
Insulation clad
Aluminum clad
Inside diameter
1,050 mm
Outside diameter
1,060 mm
Cylindrical height
2,000 mm
Total height
3,400 mm
Outlet height
270 mm
Outlet
50 mm
Inlet
60 mm
Manhole
420 mm
Place manhole
Side
