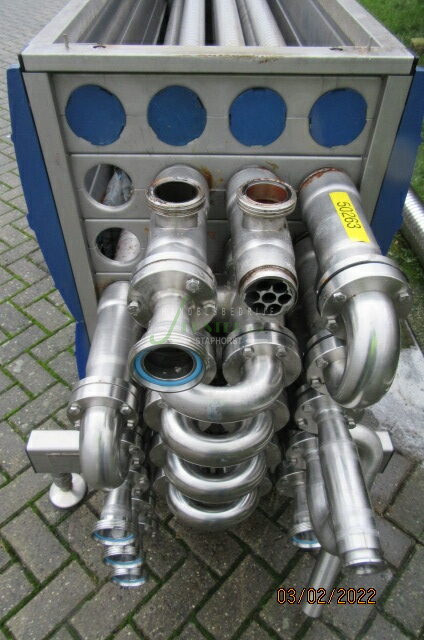

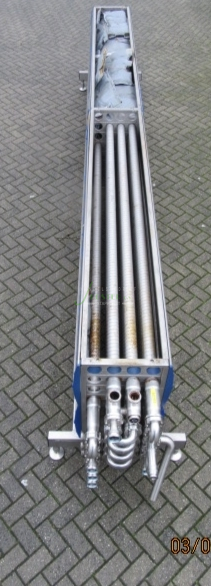

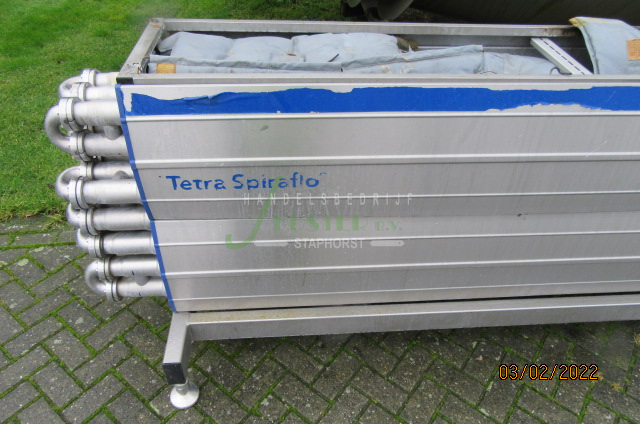

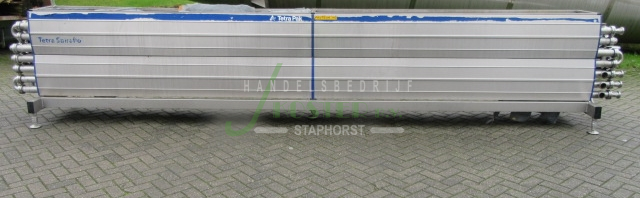

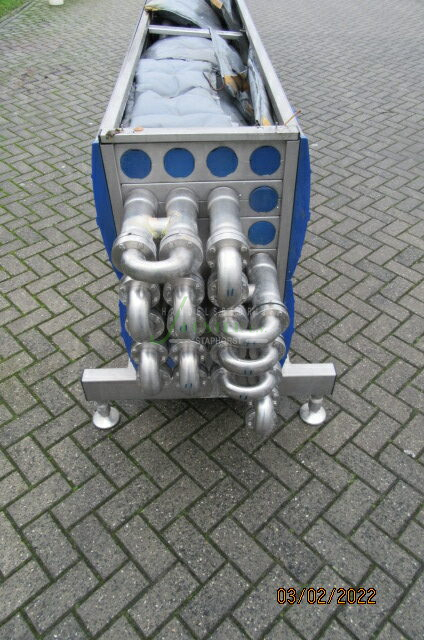

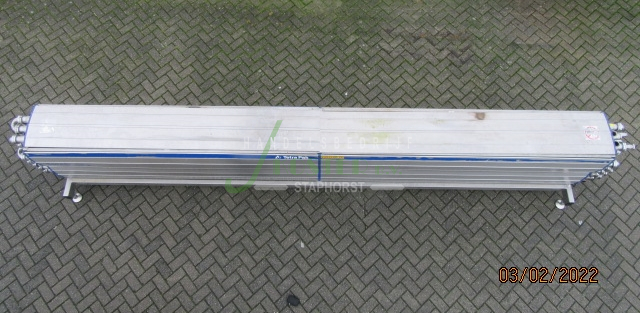

Heat exchanger, Tetra Pak spiraflow C70
Type designation
C70
Series no.
1113462 01-20
Year of construction
2011
State
Used
Manufacturer
Tetra Pak
Quantity
1
Material
SS 304
Length
6,250 mm
Width
900 mm
Height
1,150 mm
Number of sections
6
Connection size
50 mm
Number of pipes
20
Pipe diameter
70 mm
Pipe length
5,500 mm
Inside diameter
15 mm
Outside diameter
70 mm
Capacity size
136 liter
Working pressure
50 bar
Pressure in pipe
50 bar
Pressure in jacket
20 bar
Calculated temperature
180 °C
