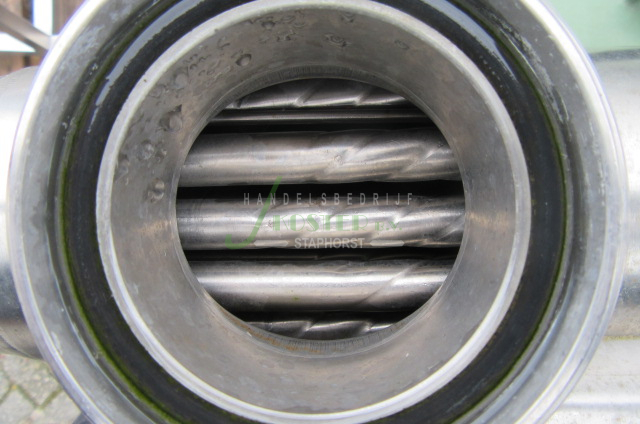

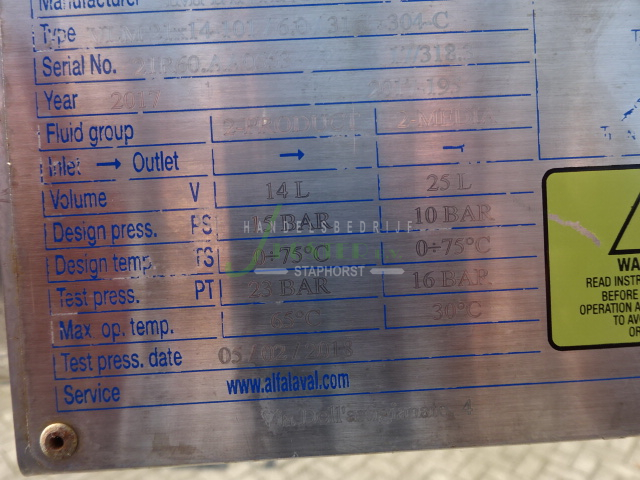

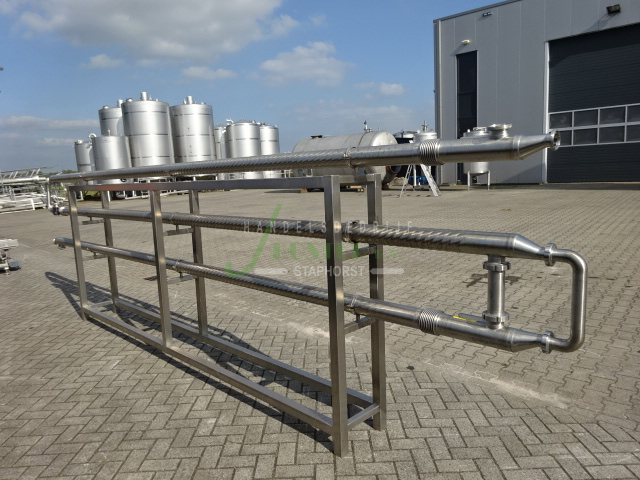

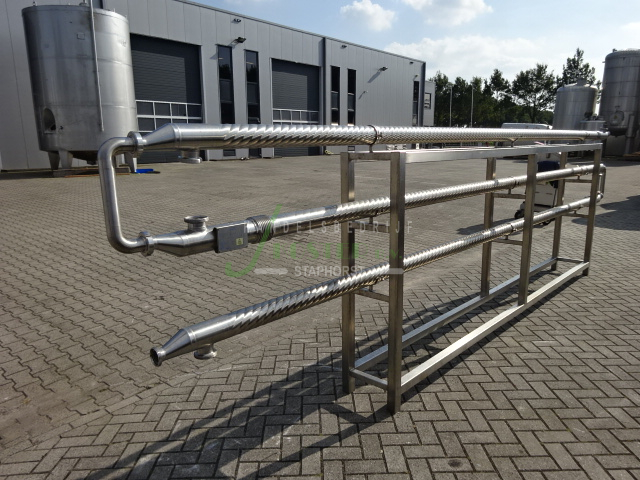

SS 316 Pipe heat exchanger Alfa Laval
Year of construction
2017
State
Used
Manufacturer
Alfa Laval
Quantity
1
Material
SS 316
Length
6,500 mm
Width
400 mm
Height
1,700 mm
Heated surface
16.6 m2
Connection size
50 mm

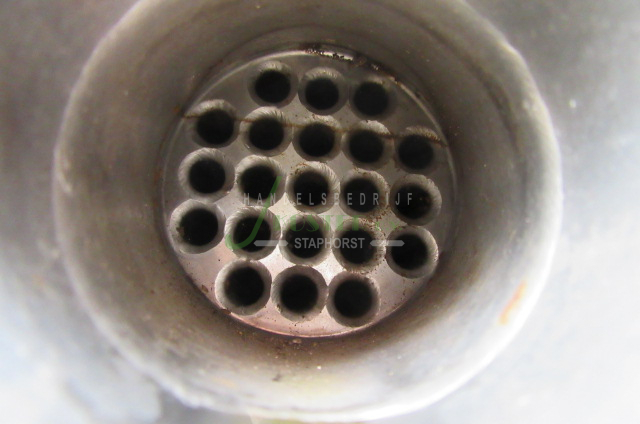

Number of pipes
3x21
Pipe diameter
12 mm
Pipe length
6,000 mm
Total length
6,500 mm
Inside diameter
12 mm
Outside diameter
14 mm
Capacity size
14/25 liter
Working pressure
10 bar
Pressure in pipe
10 bar
Pressure in jacket
10 bar
Material cylinder
SS 316
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
